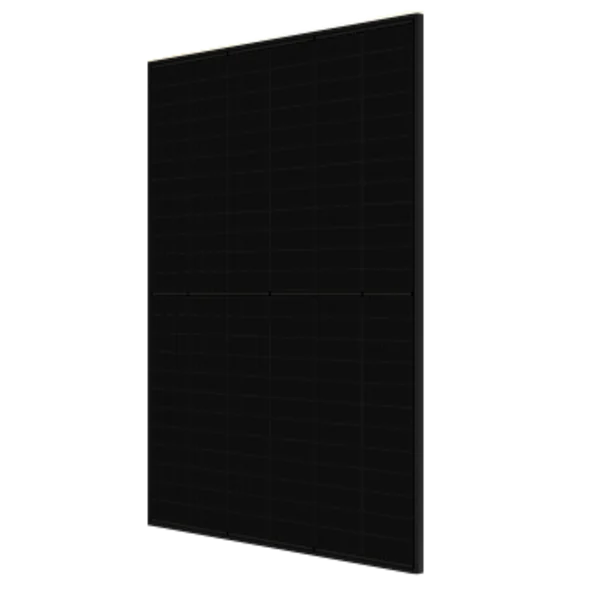

Canadian Solar TOPHiKu6 CS6.2-48TD-450 450W (all black)

Canadian Solar TOPHiKu6 CS6.2-48TD-450 (450 W) Solar Panel — is an innovative premium-class photovoltaic module in a fully black design (All-Black), created specifically for modern residential houses and commercial facilities. Through the implementation of advanced N-type TOPCon technology, this dual-sided panel (Double Glass) provides high energy generation on limited roof space. It combines high series efficiency up to 23.3%, impeccable aesthetics, and high reliability.



Key advantages of the Canadian Solar 450 W TOPHiKu6 series photovoltaic module

• Extreme series efficiency: up to 23.3% (the efficiency of the 450 W model is 22.5%). Maximum output from every square meter of roofing.
• Innovative N-type TOPCon cells: Guarantee excellent protection against LeTID and PID degradation, as well as high energy output.
• Micro-crack minimization: Optimized panel architecture reliably minimizes the impact of micro-cracks on system productivity.
• Ultra-durable dual tempered glass: 2.0-millimeter front glass with anti-glare coating and 2.0-millimeter back glass guarantee exceptional durability. The module is tested for impacts of ice balls with a diameter of 35 mm.
• Unprecedented warranty: 25 years full warranty on materials and assembly quality, as well as 30-year warranty on retention of linear power.



Detailed technical specifications (STC*)

Optimal electrical parameters make the Canadian Solar CS6.2-48TD-450 module an ideal choice for operation with most modern grid-tied and hybrid inverters.

• Maximum power (Pmax): 450 W
• Open circuit voltage (Voc): 52.9 V
• Short circuit current (Isc): 10.68 A
• Voltage at maximum power (Vmp): 44.8 V
• Current at maximum power (Imp): 10.05 A
• Output power tolerance (Power Tolerance): 0 ~ +10 W
• Temperature coefficient Pmax: -0.29%/°C (increases output in hot climates)
• Maximum system voltage: 1500 V DC (IEC/UL)



Mechanical parameters and design

• Type and number of photocells: TOPCon cells, 144 cells [2 × (12 × 6)]
• Dimensions: 1762 × 1134 × 30 mm
• Module weight: 24.6 kg
• Frame: Anodized aluminum alloy
• Junction box: Protection class IP68, contains 3 bypass diodes
• Mechanical load: Withstands front snow load up to 6000 Pa and back wind load up to 4000 Pa



Minimal degradation for maximum profit

By investing in Canadian Solar solar panels, you get a station that will operate for decades. Power degradation in the first year of operation is no more than 1%. Starting from the second year, annual power reduction does not exceed 0.4%. This means your station will generate stable amounts of clean energy throughout its entire service life.



Service support in Ukraine

LLC "Total-Energo" offers a comprehensive solution: design, equipment selection, installation and maintenance of systems based on solar panels. We provide complete service support and help you maximize the potential of your solar power plant in Ukraine.



Compatibility with charge controllers and inverters

• Work perfectly as part of hybrid systems with Victron Energy based on MultiPlus and Quattro inverters + SmartSolar MPPT RS 450/200 and 450/100 controllers for large projects, SmartSolar 250/60, 250/70, 250/85, 250/100 controllers for smaller projects.
• Full compatibility with grid-tied inverters supporting up to 1500 V DC. We strongly recommend using Fronius inverters from the Austrian manufacturer of premium quality!



Certification and quality standards

The photovoltaic module meets the strictest international standards and directives: IEC 61215, IEC 61730, UL 61730, CE, UKCA. Manufacturing is certified to ISO 9001 (Quality Management), ISO 14001 (Environmental Management) and ISO 45001 (Occupational health and safety) standards. Electrical safety is confirmed by Protection Class II.
