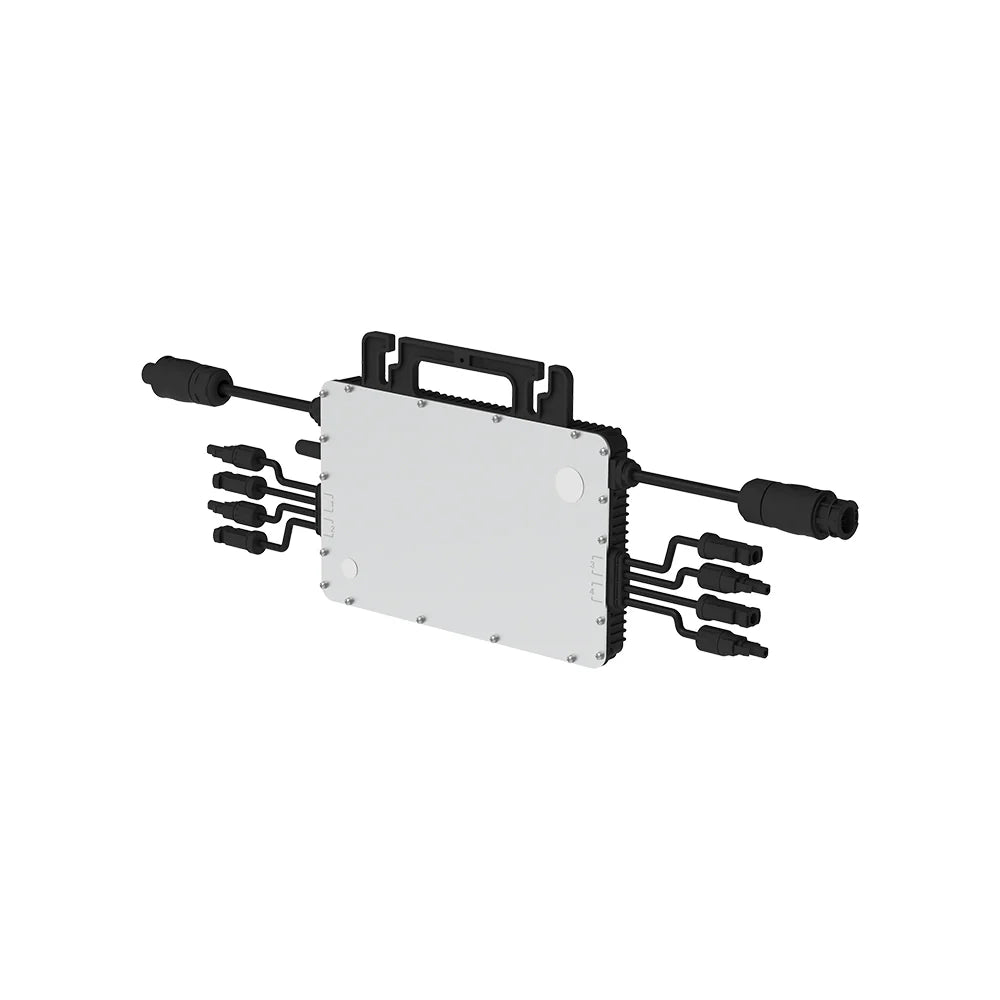

Hoymiles HM-1500N 4-in-1 Microinverter
$414.00
Unit price
/
Unavailable
Hoymiles HM-1500N 4-in-1 Microinverter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping
Shipping
1 to 2 days of handling time and 3 to 7 days of delivery
HM-1500N 4-in-1 Microinverter
Hoymiles 4-in-1 microinverter HM-1200N/1500N is a cost-effective, module-level solar solution that supports up to four panels simultaneously with a maximum DC voltage of 60 V. It is designed to maximize PV energy production for your installation. The Hoymiles microinverter also functions as PV Rapid Shutdown Equipment, meeting the requirements of NEC-2017 and NEC-2020 Article 690.12, as well as CEC-2021 Section 64-218. Additionally, all three models feature reactive power control and comply with IEEE
1547, UL 1741, and CA Rule 21.
Product Overview
| Manufacturer | Hoymiles |
| Type | Single-Phase Grid-Tie |
| CEC Peak Efficiency | 96.7% |
| Weigh | 8.27 lbs ( 3.75kg ) |
| Module Power used | 300~505W |
| Enclosure rating | IP67( Outdoor-NEMA6) |
| Warranty | 25 years |
| Compliance | UL 1741, IEEE 1547, UL 1741 SA (240 Vac), UL 1741 SB, CA Rule 21 (240Vac), CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C |
| PV Rapid Shutdown | Conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218 Rapid Shutdown of PV Systems |
Key Features
- Easy installation, just plug and play
- With Reactive Power Control, compliant with CA Rule 21
- Compliant with U.S. NEC-2017&NEC-2020 690.12 Rapid shutdown
- External antenna for stronger communication with DTU
- High reliability: NEMA 6( IP67 ) enclosure, 6000V surge protection
Product Specification
Input Data
- Maximum Input Voltage: 60V
- MPPT Voltage Range: 16~60V
- Maximum Input Current: 4 * 11.5A
- Number of MPPTs: 2
- Number of inputs per MPPT: 2
Output Data
- Peak output power(VA): 1500
- Max. continuous output power(VA): 1438
Efficiency
- CEC peak efficiency: 96.7%
- CEC weighted efficiency: 96.5%
- Nominal MPPT efficiency: 99.8%
Mechanical Data
- Dimensions (W * H * D): 11.02*6.93*1.30 inches (280* 176* 33 mm )
- Weight: 8.27 lbs ( 3.75kg )
- Enclosure rating: IP67( Outdoor-NEMA6 )
